Large planters are more than just decorative vessels for commercial landscaping and architectural design; they are complex micro-environments. Their success hinges on an often-overlooked principle: physics-driven drainage.

A failure to master the movement of water from the soil surface to the ultimate drain point doesn’t just risk plant death—it risks structural damage, costly maintenance, and liability. This article delves into the science and commercial pragmatics of effective drainage for large-scale and Tree Planters.

This guide is part of our comprehensive Planter Drainage and Watering Guides Resource Hub

The Physics of Percolation: How Water Moves Through the Medium

Whether watered by a precise drip irrigation system or heavily flushed with a hose, the fundamental process is the same. Water enters the potting mix at the top, drawn downward by gravity. However, its movement is governed by the balance between gravitational force and the capillary action within the soil pores.

As water infiltrates, it saturates the pore spaces, displacing air. The water at the advancing “wetting front” moves freely until the downward pull of gravity is balanced by the capillary tension within the soil matrix. For drainage to occur, there must be a continuous, unobstructed path of low resistance for both the water to exit and the air to enter from below to replace it. This is the critical two-phase flow principle: water out, air in. If the exit path is blocked or the air cannot displace the water, a perched water table will form inside the planter, saturating the root zone and leading to anaerobic conditions and root rot.

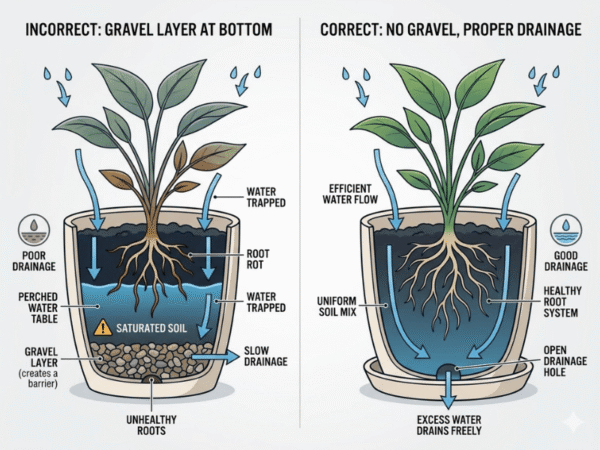

The Great Gravel Myth: A Lesson from Septic Systems

A pervasive, yet fundamentally flawed, practice is placing a layer of gravel or stones at the bottom of a planter to “improve drainage.” This does the opposite. It creates a textbook example of a perched water table.

Here’s the science: Water moves easily through the fine pores of the potting mix until it hits the sudden transition to a layer with much larger pores (the gravel). This is the same principle that governs a septic trench system, but it works in the opposite direction. In a septic trench, effluent moves from the small-pipe pores into the large-pore gravel and soil, encouraging dispersal. In a planter, water is trying to exit.

The water’s capillary bond is stronger in the fine material above. It will not readily exit into the larger air space of the gravel layer until the soil above becomes nearly saturated. The water essentially “perches” above the gravel-air interface, as the air pressure below prevents easy entry. The gravel layer merely raises the level of the soggy, anaerobic zone closer to the plant’s roots, while sacrificing valuable soil volume. The only valid use for gravel in a modern planter system is as a clean, inert media within a contained false-bottom reservoir (see below).

Diver Deeper: Busting the Myth of Should You Add Drainage to the Base of Your Planters

The First Rule of Waterproofing: It’s Not the Planter’s Job

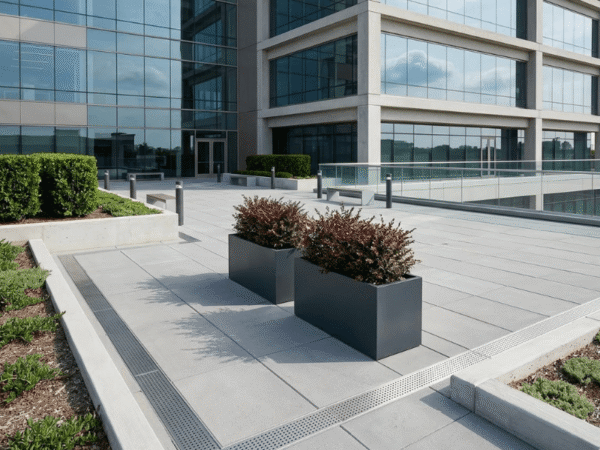

A critical commercial and design consideration is waterproofing responsibility. A planter cannot be relied upon as the primary waterproofing barrier for the structure it sits upon. The building terrace, podium, or plaza must itself be properly waterproofed and sloped to drains. Why?

• Planter Failure Modes: Planters are vulnerable. They can be cracked by impact, vandalized, tipped over, or have their integral drainage blocked by poor potting practices (e.g., no filter fabric over holes).
• External Damage: A vehicle or machinery could breach the planter wall.
• Maintenance & Error: During replanting, drainage layers can be disturbed, or a drain plug might be left open.

If the underlying structure depends on the planter for waterproofing, any of these events leads to water infiltration into the building below—a costly liability. The commercial imperative is clear: Waterproof the structure, then treat all planters as potential sources of incidental water. Their primary duty is to manage water for the plant’s health, not to protect the asset. Therefore, the role of the planter itself is not to be the building’s umbrella, but to be a self-contained water management unit. This brings us to the engineered solution that achieves exactly that.

The Engineering Solution: The False-Bottom Reservoir System

For large planters (e.g., 1000L x 400W x 1000H), the optimal solution is an integrated false-bottom system, often fabricated in durable, seamless materials like fibreglass.
How It Works:

1. The False Floor: A structural floor is installed inside the planter, say at 500mm depth. This creates an upper “root zone” chamber and a lower “reservoir” chamber.
2. Growing Media: The false floor is perforated with numerous drainage holes. On top of it, the high quality potting mix.
3. The Reservoir: The lower chamber is fully waterproofed and serves as a catchment basin. It is not filled with potting mix. This empty (or gravel-filled) space provides the unimpeded air-water interface essential for drainage, eliminating the perched water table.

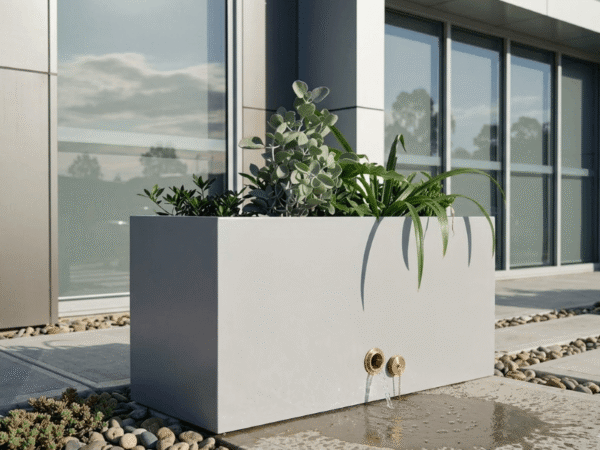

4. Controlled Outlet: A threaded drain plug or bulkhead fitting is installed in the side of the planter, at the base of this reservoir chamber. This allows for two key functions:

• Primary Drainage: Excess water from flushing or rain enters the reservoir and exits via this side drain, which is connected to the site’s drainage system.
• Maintenance & Flushing: Removing the plug allows complete reservoir drainage for cleaning and sediment removal. It also enables a powerful flush cycle to leach accumulated salts and toxins from the soil.

Sigma Planters don’t currently stock these false-bottom planters, but can make to order. Minimum order 10 cubic meters

Commercial Conclusions

Specifying and installing large planters requires a systems-thinking approach. The goal is to create a resilient, low-maintenance asset. The false-bottom reservoir system addresses the physics of drainage, separates plant health from waterproofing liability, and builds in maintenance access. It represents a higher initial investment but pays dividends in plant vitality, reduced replacement costs, and the avoidance of catastrophic water damage. For professional resources and industry guidance on best practices in landscape architecture and urban greening, visit the Australian Institute of Landscape Architects. In commercial landscaping, true value lies not in the container you see, but in the invisible engineering that ensures its long-term success.
