For landscape architects, structural engineers, and specifiers working on Australian projects—from rooftop hospitality venues in Melbourne to coastal developments in Queensland—the mass of an extra large planter is rarely just the planter itself. The critical design load is the fully loaded mass: planter + growing medium + water + vegetation + drainage layers.

Underestimating this figure leads to slab overloading, deck collapse, or planter failure. Overestimating it adds unnecessary cost to structure reinforcement. This guide provides a repeatable methodology for calculating accurate loads.

This guide is part of our comprehensive collection of resources for working with Extra Large Planters.

The Importance of Weight in Planter Specification

In structural terms, an extra large planter is a permanent live load (or a dead load if fully fixed). The National Construction Code (NCC) 2022 references AS/NZS 1170.1, which sets out requirements for imposed actions on floors, balconies, and podiums.

Key distinctions for specifiers:

Load Type	Description	Example
Dead Load (G)	Permanent weight of structure + fixed elements	Empty planter, lightweight concrete shell
Live Load (Q)	Variable loads from occupancy, furniture, plants	Soil moisture fluctuation, seasonal plant growth
Serviceability Limit State	Deflection, vibration, cracking	Saturated soil weight causing slab bowing

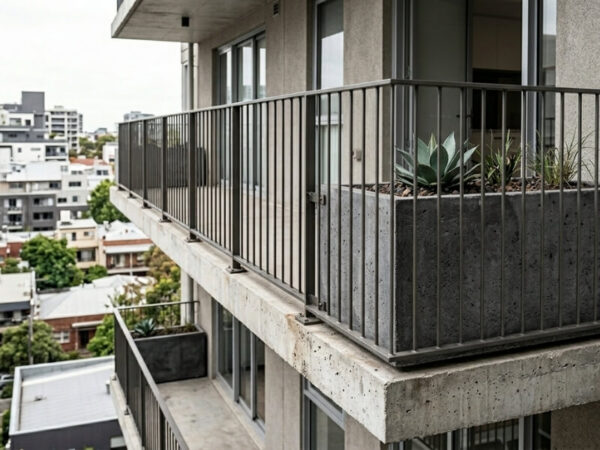

The risk with extra large planters is that specifiers treat them as furniture (typical live load 1.5–3 kPa) rather than heavy storage (5–7.5 kPa). A single metre-square planter can exceed 800 kg—equivalent to a small car parked on a balcony.

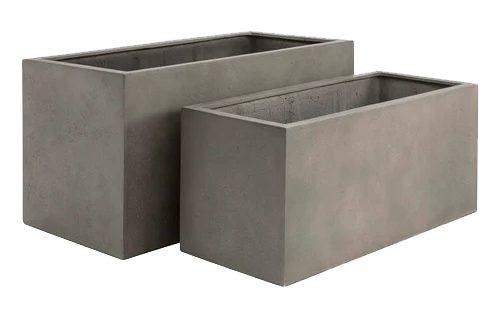

Case Study: Our Florence Lightweight Concrete Trough 1000

Sigma Planters’ Florence range is manufactured using Glass Reinforced Concrete (GRC) with a fibreglass backing layer. This composite construction achieves the aesthetic of precast concrete at approximately 60% of the weight.

Florence Lightweight Concrete Trough 1000 – Manufacturer Specifications

Parameter	Value
External Length	1000 mm
External Width	450 mm
External Height	450 mm
Tare Weight (empty)	12.5 kg
Material	GRC (Glass Reinforced Concrete)
Colour	Grey Cement
Drainage	Drainage holes (15–30 mm); 3 mm raised feet to assist drainage

How to Calculate the Volume and Weight

Using the Florence Trough 1000 as the worked example, we calculate internal volume, then dry weight, then fully loaded mass.

Step 1: Determine Dimensions

For conservative structural calculations, external dimensions are used as the basis for volume. External dimensions: L1000 × W450 × H450 mm.

Step 2: Calculate Volume

Volume = Length×Width×Height

Volume = 1.000 × 0.450 × 0.450 = 0.2025 m³ (202.5 litres)

Step 3: Account for Drainage Layer

Industry best practice for extra large planters includes a 50–70 mm drainage layer of scoria, hydroleca, or gravel. This layer reduces soil volume but adds its own weight.

• Drainage layer depth: 60 mm
• Drainage volume = 1.000 × 0.450 × 0.060 = 0.027 m³ (27 litres)
• Remaining soil volume = 0.2025 – 0.027 = 0.1755 m³ (175.5 litres)

Step 4: Calculate Weight of Growing Medium

Australian standard premium potting mix (AS 3743 compliant) has the following bulk densities:

Condition	Density	Weight for 0.1755 m³
Dry (off-the-shelf)	450 kg/m³	79 kg
Damp (planted, not saturated)	750 kg/m³	132 kg
Saturated (fully wet)	1000 kg/m³	175.5 kg

Critical specifier rule: Always use saturated density for structural calculations. Rain events, irrigation failure, or blocked drainage can saturate the entire profile.

Step 5: Calculate Drainage Layer Weight

Using scoria (volcanic gravel) – typical density 850 kg/m³ (dry).

• Weight = 0.027 m³ × 850 kg/m³ = 23 kg

Scoria holds less water than soil, but add 10% for moisture: 26 kg (rounded).

Step 6: Add Plant Weight

For a trough of this size, typical planting might be:

• One feature shrub or small tree (e.g. Syzygium australe – Lilly Pilly): 15–25 kg (root ball + foliage)
• Or 5–7 ornamental grasses: 3–5 kg each, total ~20 kg

Use 25 kg for structural calculations.

Fully Loaded Mass

Now sum all components.

Component	Weight (kg)
Empty planter (tare)	12.5
Saturated potting mix (175.5 L)	175.5
Drainage layer (scoria, moist)	26
Plant material	25
TOTAL FULLY LOADED MASS	239 kg

Load per square metre (kPa)

The planter footprint (external) is: 1.000 m × 0.450 m = 0.45 m²

Load = (239 kg × 9.81 m/s²) / 0.45 m² = 5.2 kPa

Interpretation: In simplified terms, this single planter imposes 5.2 kPa of pressure over its footprint on the supporting structure.

For context:

• Residential balcony design live load: 2.0–3.0 kPa

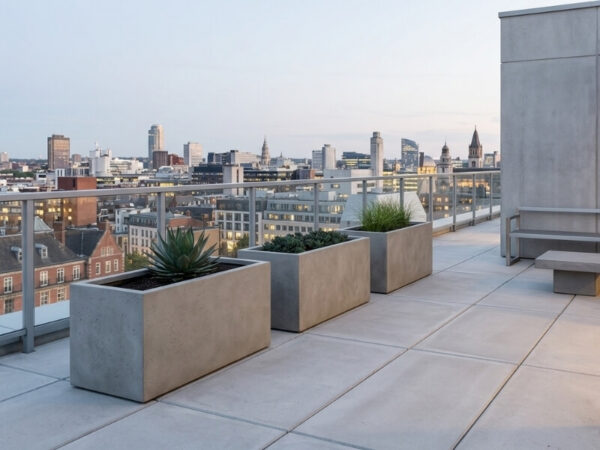

• Commercial rooftop terrace: 4.0–5.0 kPa
• Parking slab: 7.5 kPa
• Ground-level slab on grade: no practical limit

Conclusion: While the Florence Trough 1000 at full saturation exceeds the typical residential balcony live load values, this represents a localised load rather than a uniformly distributed one. Structural adequacy ultimately depends on slab design, reinforcement, and load distribution, and should be verified by a structural engineer—particularly for elevated installations.

Structural and Logistical Considerations

Structural Checklist for Specifiers

Before specifying an extra large planter, confirm the following with the project structural engineer:

• Slab or deck design live load (kPa)
• Point load capacity (especially for planters on pedestal systems)
• Deflection limits under sustained load (creep over time)
• Edge fixings for seismic or wind restraint (relevant for upper floors)
• Waterproofing membrane compatibility (heavy planters can puncture)

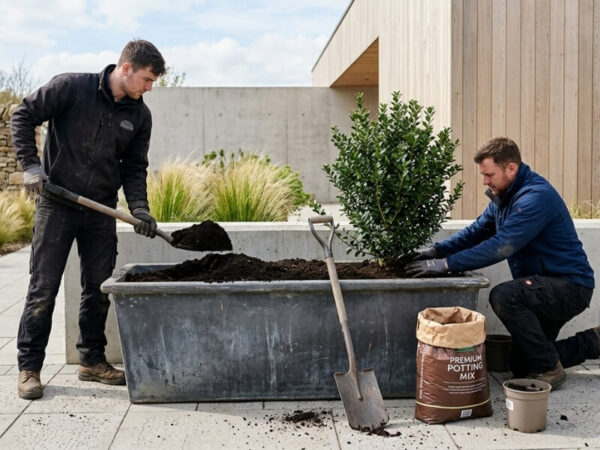

Logistical Implications – Installation Sequence

The Florence Trough 1000 weighs 12.5 kg empty but 239 kg full. This dictates the installation workflow:

Step	Action	Rationale
1	Position empty planter at final location	Avoids moving heavy loads across finished floors
2	Install drainage layer (scoria)	Lightweight, can be bucketed in
3	Add potting mix and plant	Distribute weight gradually
4	Water in thoroughly	Final saturation weight achieved on-site
5	Do not move again	Planter is now immovable without mechanical assistance

Note: Never specify delivery of pre-filled planters to an upper floor. The transport weight will be three times the empty weight, requiring forklifts or cranes. For further guidance on lifting safety and procedure, check out our guide on how to safely move and position extra-large planters.

Getting Specification and Procurement Right

Procurement Checklist

When ordering Sigma Planters or equivalent:

• Confirm planter dimensions or request volume in litres
• Confirm drainage hole sizing and quantity
• Request material safety data sheet for GRC (if required for fire rating)
• Specify colour and finish (UV stability for Australian conditions)
• Order planter feet or levelling shims if on uneven surfaces

Weight Reduction Strategies

If structural capacity is marginal, consider:

Strategy	Weight Saving	Trade-off
100% lightweight mix (e.g. coco coir + perlite)	~30%	Reduced moisture retention, more frequent watering
Expanded clay drainage layer (hydroleca)	15 kg per trough	Higher cost than scoria
False bottom with void space	50–70 kg	Reduced root depth
Locate planter over structural beam	N/A (load path improvement)	Requires engineer input

Conclusion

The Florence Lightweight Concrete Trough 1000 exemplifies the modern extra large planter: manageable at delivery (12.5 kg), but substantial when fully specified (239 kg). For the specifier, the lesson is clear:

Tare weight is a logistics figure. Fully loaded mass is a structural figure. Never confuse the two.

A rigorous weight analysis—using internal volume, saturated soil density, drainage layers, and plant mass—protects against structural failure, supports compliance with the NCC and AS/NZS 1170.1, and allows landscape architects to confidently specify dramatic, large-scale planting on projects ranging from ground-level public domains to high-rise podiums.

Always engage a structural engineer early. And always calculate with the planter wet.

About this guide
This specification methodology applies to extra large planters from Sigma Planters (Florence, Manhattan, Moscow ranges) and comparable GRC or fibreglass units, subject to project-specific verification. All calculations use Australian standard units and reference AS/NZS 1170.1 – Structural design actions – Permanent, imposed and other actions (as referenced by the NCC).
